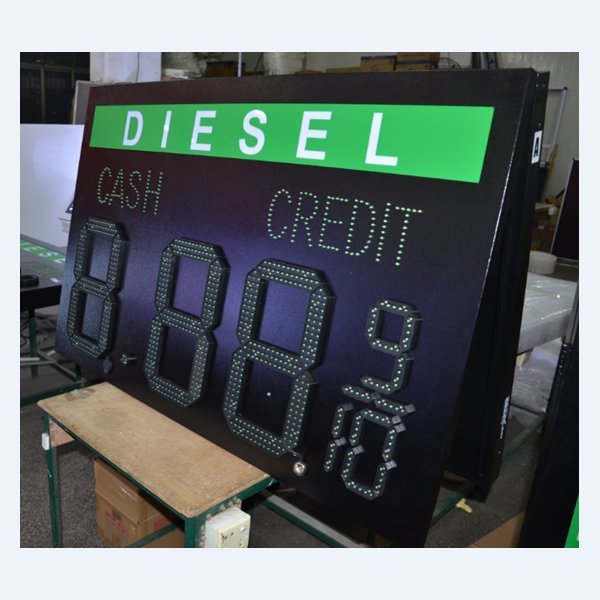

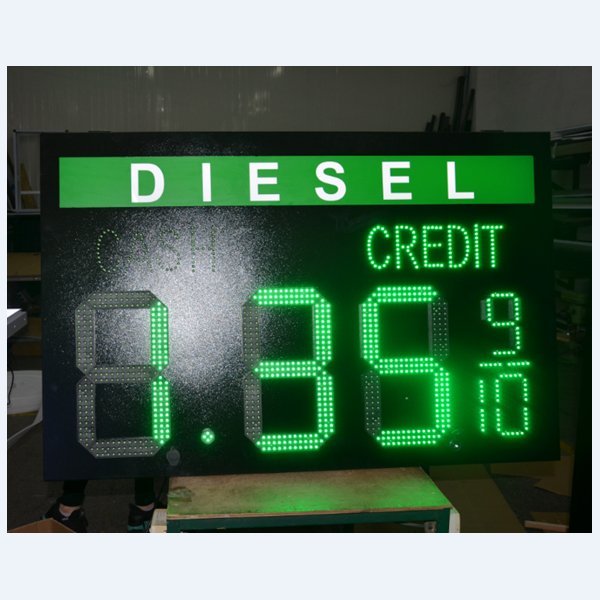

LED GAS SIGN Black & Green 1 Side 15”



PRODUCT Size 49.2”*32.3”*3.95”(1250*820*100mm)
LED Number’s height 15”+6”
LED Lamps QTY 1610
Housing color Black
LED color Green
Lighting box White lighting+Red Regular letters
Flash mode CASH&CREDIT can be flash in each 5 seconds
Product name WSL-GS-G-15″-1-C-C LED GAS SIGN
LED MODULE LED Chips brand Epistar Star
LED Chips size 9*13
LED type DIP546
LED Number’s size 15”:220*390mm; 6″:85*160mm
LED Lamps QTY/Number 15”–245; 6′–35
OPTICAL Display Dimming Over 8 levels of automatic intensity adjustment
Display Color Green
Brightness 6000-12000mcd
Best viewing distance 10-150m
Best viewing angle 60 degree
CONTROL Drive mode Static scan
Drive card 2P connecting port
Control system RF LCD Remote control
Display format Numbers
Control card NUM-GAS
POWER Frame rate >60hz
Refresh rate >180hz
Current 20MA
Working temperature storage:-40~+75℃
Woking Voltage(AC) 100-230V
Supply Voltage(DC) 12V
Power(W) 82W
Power Supply Meanwell with UL certification
MTBF(Mean Time Between Failure) >5000 hours
Display lifespan >100000 hours
OTHERS Frame(Cabinet) Front open iron cabinet
Waterproof rate Waterproof, IP65
Using environment Semi-outdoor / Outdoor
Operating temperature -40℃ TO 45℃
Operating humidity 10% TO 90% RH
Storage temperature -40℃ TO 80℃
Storage humidity 10% TO 95% RH
Warranty time 3 Years
