LINKLITE | LED Sign Module

Beyond LED Technology's LINKLITE 6500K is a daylight white LED sign module built for channel letters, light boxes, and commercial signage where natural, balanced white output is preferred over the ultra-cool intensity of 10000K. The 6500K…

Quantity:
− +

Estimated Delivery:  12-26 days (International), 3-6 days (United States)

Return within 45 days of purchase. Duties & taxes are non-refundable.

  • Description
  • Specifications

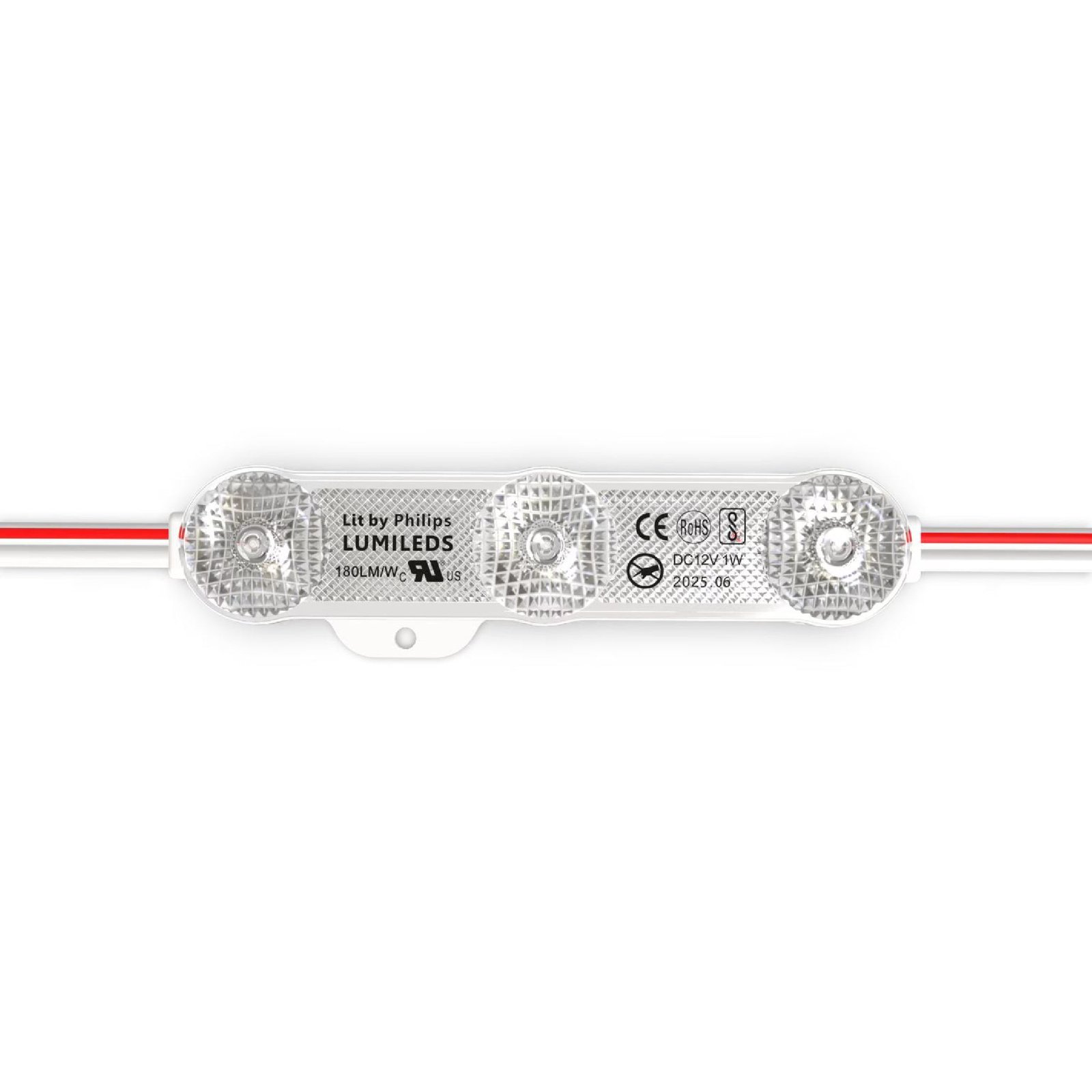

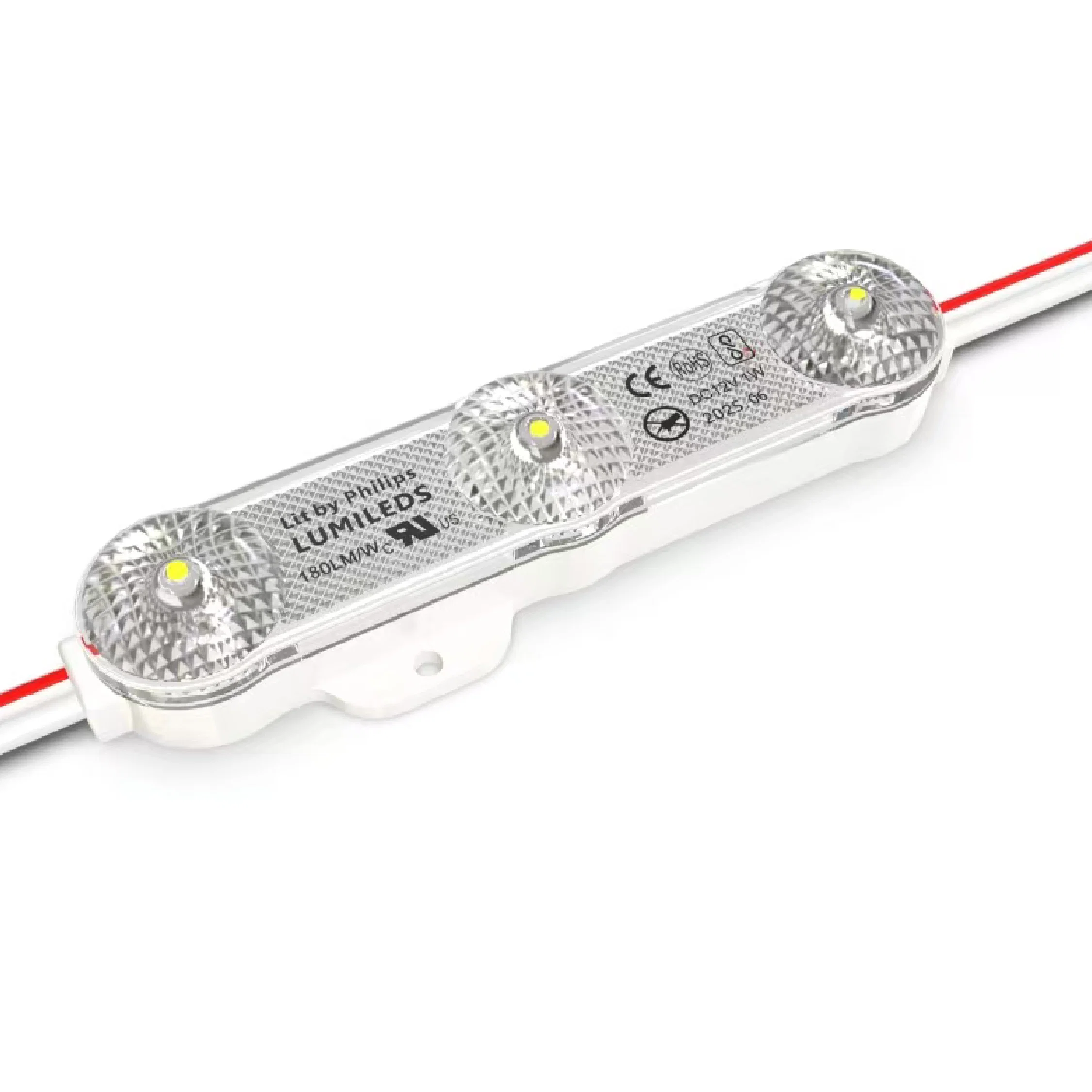

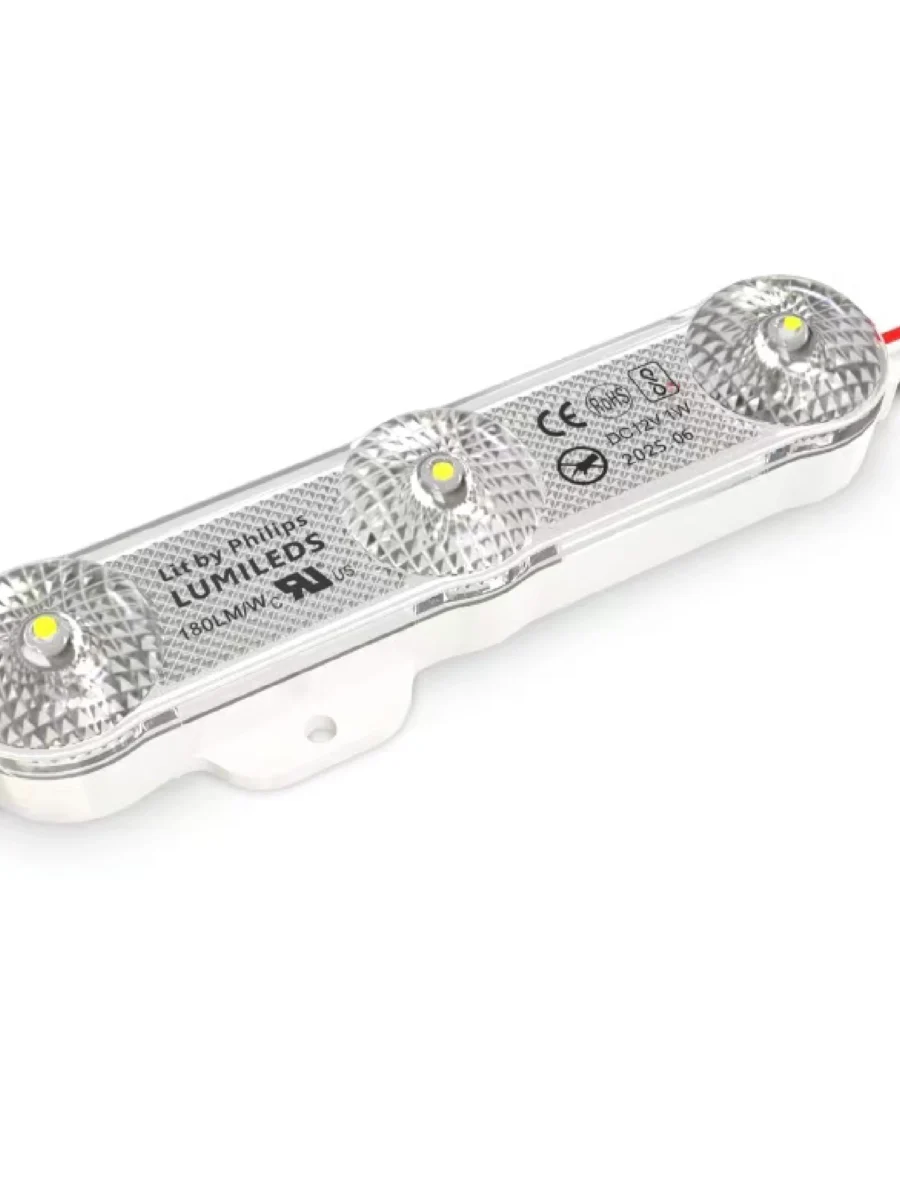

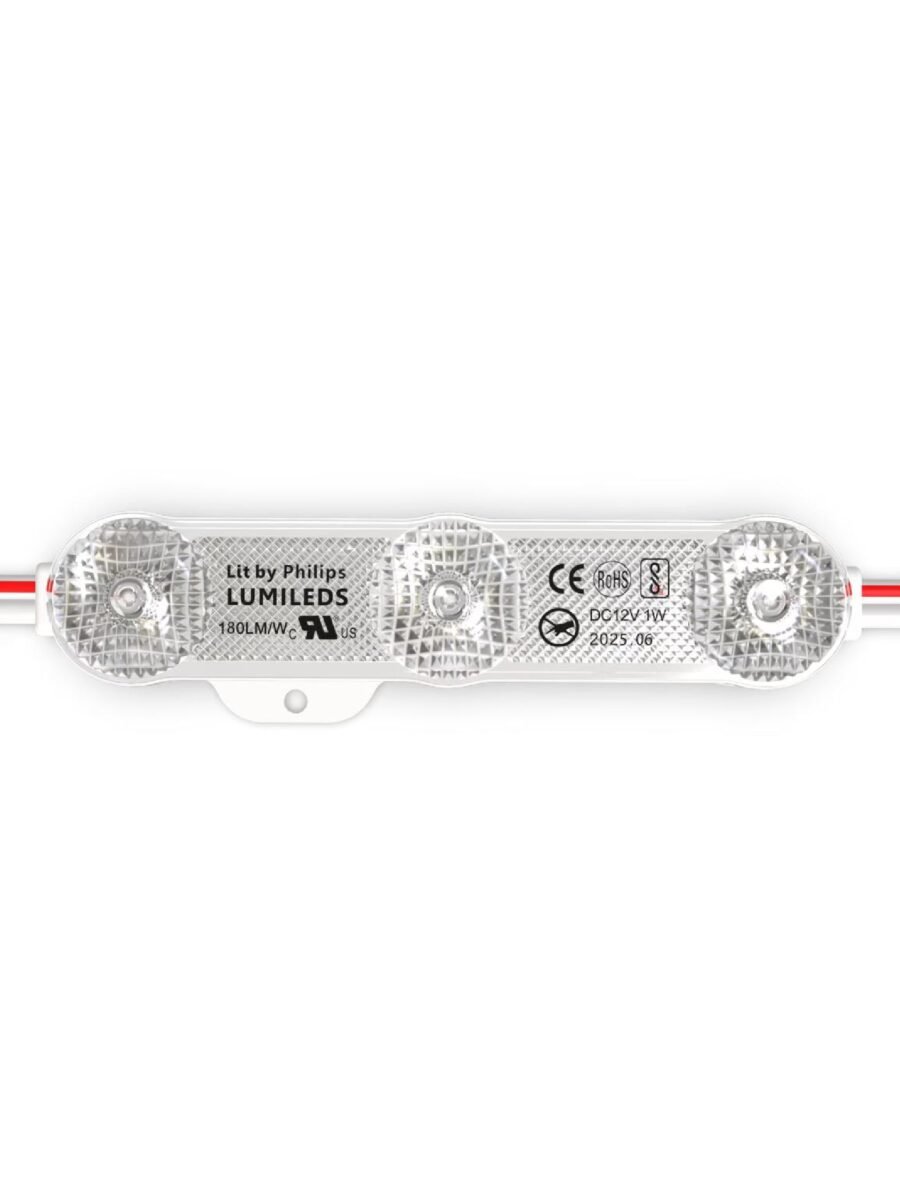

Beyond LED Technology’s LINKLITE 6500K is a daylight white LED sign module built for channel letters, light boxes, and commercial signage where natural, balanced white output is preferred over the ultra-cool intensity of 10000K. The 6500K color temperature renders whites cleanly and accurately — making it the more versatile specification for signage requiring true color representation alongside brightness, including illuminated retail signs, wayfinding displays, and branded commercial installations. The 175° micro-prism lens maintains uniform surface brightness across the full module run, and up to 50 modules link per string on stable 12V DC. IP68 protection covers all outdoor signage environments reliably.

Key Features

  • 1.2W per module
  • Fixed CCT: 6500K
  • 135 lumens per module
  • 3× LumiLEDs SMD 2835 per module
  • Micro-prism lens
  • 175° beam angle
  • Linkable up to 50 modules per string
  • ABS housing with copper wiring
  • White housing finish
  • Input voltage 12V DC
  • UL listed
  • IP68 rated
