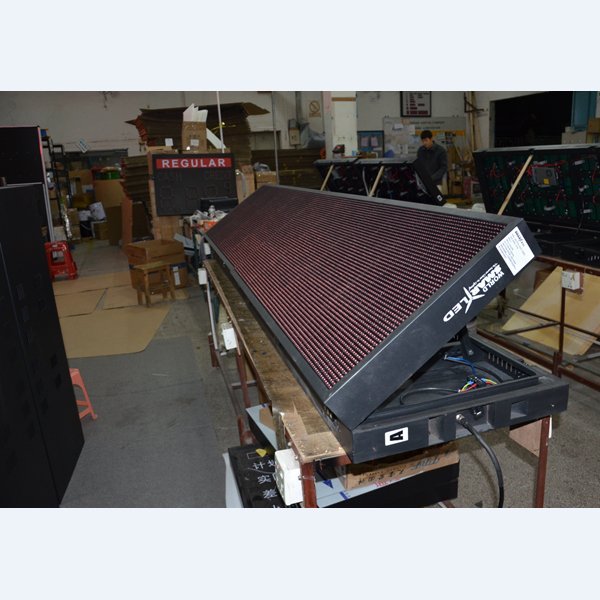

Outdoor LED RED Sign 8×3

Category:

Description

SPECIFICATION
PRODUCT Size 102.8”*20.9”*4.72” (2610*530*120mm)
Resolution 256*48
LED QTY 12288
Housing color Black
LED color Red
Product name WSL-OD-P10-8X3-RED LED MESSAGE SIGN
LED MODULE LED chips brand Epistar
LED type DIP-546
Pixel pitch(mm) 10
Density(pixel/squ.m) 10000
Module size(mm) 320*160
Pixels(w*h) 32*16
LED module port HUB12
Configuration 1Red,9 mil
OPTICAL Max. texts characters,numbers
Display Color Single color, Red
Brightness 1400-1600mcd
Brightness adjustment use the software to adjust
Best viewing distance 10-150m
Best viewing angle 60-120 degree
CONTROL Control mode Asynchronous
Drive mode 1/4 scan
PC operating system winxp,win7,win8,win10,etc..
Control system USB+APP+WIFI Control
Display format Text, numbers, time, temperature,etc…
Operation software & control card POWERLED A6UW
ELECTRICAL Average power consumption 400w/squ.m
Max.power consumption 800w/squ.m
Frame rate >60hz
Refresh rate >180hz
Working temperature storage:-40~+75℃
Woking Voltage(AC) 100-230V
Supply Voltage(DC) 5V
Power(W) 480W
Power Supply Meanwell with UL certification
MTBF(Mean Time Between Failure) >5000 hours
Display lifespan >100000 hours
OTHERS Frame(Cabinet) Iron cabinet, front open
Waterproof rate Waterproof,IP65
Using environment Outdoor
Operating temperature -40℃ TO 45℃
Operating humidity 10% TO 90% RH
Storage temperature -40℃ TO 80℃
Storage humidity 10% TO 95% RH
Warranty time 3 Years
