Description

SPECIFICATION
PRODUCT Size 65”*27.2”*4.72”(1650*690*120mm)
Resolution 320*128
LED QTY 40960
Housing color Black
LED color Fullcolor(Multi color)

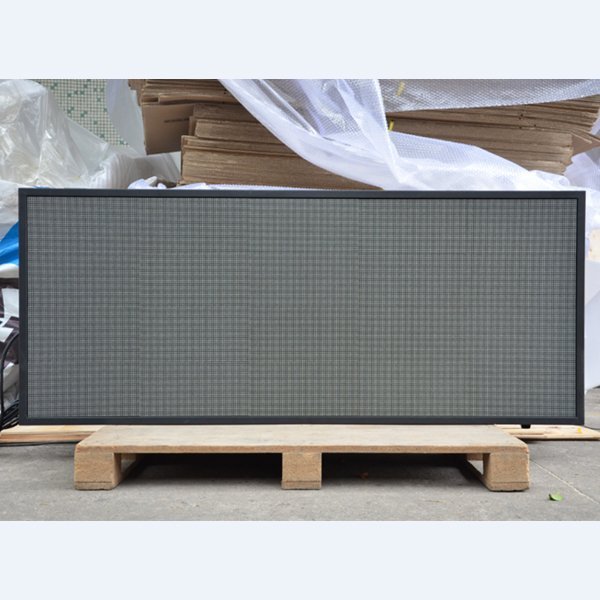

Product name WSL-OD-P5-5X4-RGB LED MESSAGE SIGN
LED MODULE LED chips brand Nation Star
LED type SMD-3528
Pixel pitch(mm) 5
Density(pixel/squ.m) 40000
Module size(mm) 320*160
Pixels(w*h) 64*32
LED module port HUB75
Configuration RGB(SMD 3 IN 1),9 mil
OPTICAL Max. texts characters,numbers
Display Color Fullcolor(Multi color)
Brightness 6500-7000mcd
Brightness adjustment use the software to adjust
Best viewing distance 10-150m
Best viewing angle 60-120 degree
CONTROL Control mode Asynchronous
Drive mode 1/8 scan
PC operating system winxp,win7,win8,win10,etc..
Control system USB+APP+WIFI Control
Display format Text, numbers, time, temperature,etc…
Operation software & control card HUIDU D30
ELECTRICAL Average power consumption 700w/squ.m
Max.power consumption 1400w/squ.m
Frame rate >60hz
Refresh rate >180hz
Working temperature storage:-40~+75℃
Woking Voltage(AC) 100-230V
Supply Voltage(DC) 5V
Power(W) 1000W
Power Supply Meanwell with UL certification
MTBF(Mean Time Between Failure) >5000 hours
Display lifespan >100000 hours
OTHERS Frame(Cabinet) Iron cabinet, front open
Waterproof rate Waterproof,IP65
Using environment Outdoor
Operating temperature -40℃ TO 45℃
Operating humidity 10% TO 90% RH
Storage temperature -40℃ TO 80℃
Storage humidity 10% TO 95% RH
Warranty time 3 Years
