SPECIFICATION
PRODUCT Size 102.8”*20.9”*3.5”(2610*530*90mm)
Resolution 512*96
LED QTY 49152
Housing color Black
LED color Fullcolor(Multi color)

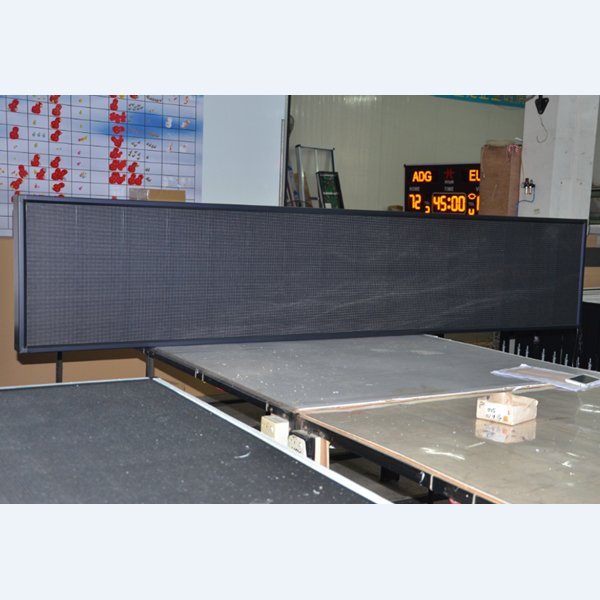

Product name WSL-ID-P5-8X3-RGB LED MESSAGE SIGN
LED MODULE LED chips brand Nation Star
LED type SMD-3528
Pixel pitch(mm) 5
Density(pixel/squ.m) 40000
Module size(mm) 320*160
Pixels(w*h) 64*32
LED module port HUB75
Configuration RGB(SMD 3 IN 1),9 mil
OPTICAL Max. texts characters,numbers
Display Color Fullcolor(Multi color)
Brightness 2000-2500mcd
Brightness adjustment use the software to adjust
Best viewing distance 10-150m
Best viewing angle 60-120 degree
CONTROL Control mode Asynchronous
Drive mode 1/16 Scan
PC operating system winxp,win7,win8,win10,etc..
Control system USB+APP+WIFI Control
Display format Text, numbers, time, temperature,etc…
Operation software & control card HUIDU D30
ELECTRICAL Average power consumption 380w/squ.m
Max.power consumption 760w/squ.m
Frame rate >60hz
Refresh rate >180hz
Working temperature storage:-40~+75℃
Woking Voltage(AC) 100-230V
Supply Voltage(DC) 5V
Power(W) 660W
Power Supply Meanwell with UL certification
MTBF(Mean Time Between Failure) >5000 hours
Display lifespan >100000 hours
OTHERS Frame(Cabinet) Aluminum frame
Waterproof rate no waterproof
Using environment Indoor
Operating temperature -40℃ TO 45℃
Operating humidity 10% TO 90% RH
Storage temperature -40℃ TO 80℃
Storage humidity 10% TO 95% RH
Warranty time 3 Years
