Description

SPECIFICATION
PRODUCT Size 39.8”*32.2”*3.5”(1010*818*90mm)
Resolution 320*256
LED QTY 81920
Housing color Black
LED color Fullcolor(Multi color)

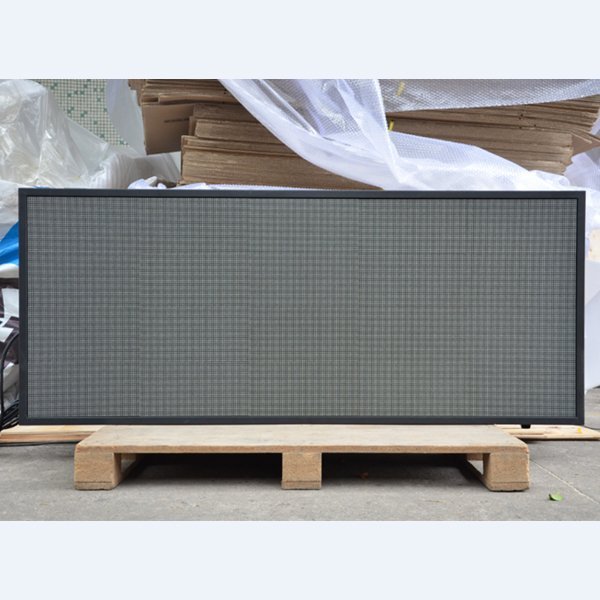

Product name WSL-ID-P3-5X4-RGB LED MESSAGE SIGN
LED MODULE LED chips brand Nation Star
LED type SMD-2121
Pixel pitch(mm) 3
Density(pixel/squ.m) 111111
Module size(mm) 192*192
Pixels(w*h) 64*64
LED module port HUB75
Configuration RGB(SMD 3 IN 1),9 mil
OPTICAL Max. texts characters,numbers
Display Color Fullcolor(Multi color)
Brightness 2500-3000mcd
Brightness adjustment use the software to adjust
Best viewing distance 10-150m
Best viewing angle 60-120 degree
CONTROL Control mode Asynchronous
Drive mode 1/32 scan
PC operating system winxp,win7,win8,win10,etc..
Control system USB+APP+WIFI Control
Display format Text, numbers, time, temperature,etc…
Operation software & control card HUIDU C10
ELECTRICAL Average power consumption 350w/squ.m
Max.power consumption 700w/squ.m
Frame rate >60hz
Refresh rate >180hz
Working temperature storage:-40~+75℃
Woking Voltage(AC) 100-230V
Supply Voltage(DC) 5V
Power(W) 460W
Power Supply Meanwell with UL certification
MTBF(Mean Time Between Failure) >5000 hours
Display lifespan >100000 hours
OTHERS Frame(Cabinet) Aluminum frame
Waterproof rate no waterproof
Using environment Indoor
Operating temperature -40℃ TO 45℃
Operating humidity 10% TO 90% RH
Storage temperature -40℃ TO 80℃
Storage humidity 10% TO 95% RH
Warranty time 3 Years
